What Is the Lincoln IDEALARC DC-400?

The Lincoln Electric IDEALARC DC-400 (K1308-25) is a heavy-duty, 400-ampere constant-current/constant-voltage DC arc welder built for industrial fabrication, heavy structural work, and multi-shift production environments. Rated at 400 A / 36 V at 60% duty cycle and capable of 350 A at 100% continuous duty, this transformer-rectifier machine serves as a reliable workhorse for SMAW (Stick), GMAW (MIG), FCAW (Flux-Cored), and DC TIG processes in a single package. Its dual process selector (CC/CV) positions it as a flexible power source for shops running multiple welding procedures on the same machine.

Built on Lincoln Electric's Idealarc platform — designed and manufactured in Cleveland, Ohio — the DC-400 uses a copper-wound transformer with a silicon controlled rectifier (SCR) output stage. The SCR design provides electronically smooth arc characteristics with low ripple current, reducing spatter and improving bead appearance compared to older diode-bridge rectifiers. The K1308-25 designation indicates 230/460 V primary, three-phase, 60 Hz input configuration.

Specs & Materials

Best Applications

The DC-400 delivers best results in these high-demand environments:

• Heavy structural steel fabrication: 5/16 in and 3/8 in iron-powder electrodes at 300–400 A for rapid fill on weld joints in bridges, pressure vessels, and heavy equipment frames.
• FCAW (flux-cored) semi-automatic welding: In CV mode, the DC-400 connects directly to Lincoln's LN-7, LN-8, or LN-9 wire feeders via ArcLink or analog control cables, making it a production FCAW power source for shipbuilding, structural steel, and heavy fabrication.
• Submerged arc welding (SAW): In CV mode at high amperage settings, the DC-400 serves as a power source for SAW applications when paired with Lincoln's NA-3 or NA-5 automatic wire feeders — an economical entry into mechanized welding.
• Pipeline and maintenance welding: In CC mode with high OCV (80 V), the DC-400 easily strikes and sustains arc with E6010 and E6011 cellulosic electrodes for pipeline root passes and maintenance work in difficult field conditions.
• Training environments: The DC-400 is a common machine in welding schools and apprenticeship programs where students need a stable, forgiving machine to learn fundamentals before transitioning to inverter-based equipment.

How to Use the Lincoln IDEALARC DC-400

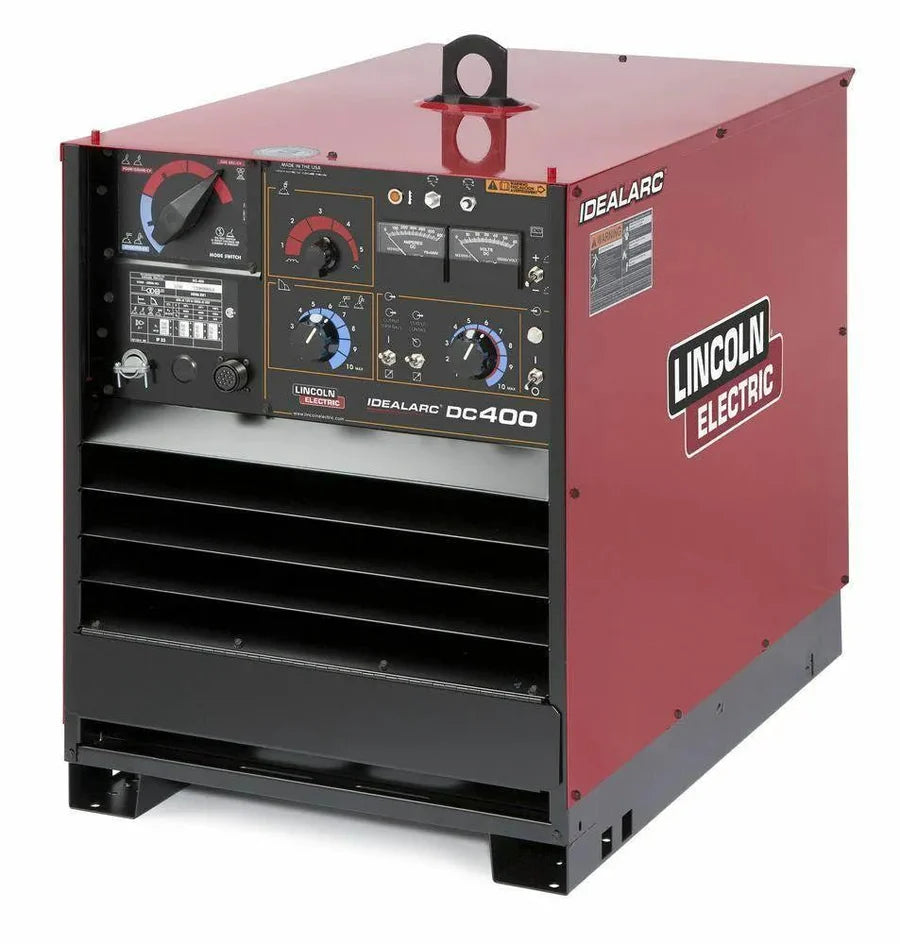

The DC-400 front panel presents a range selector (controlling coarse amperage/voltage), a fine adjustment knob, a process selector switch (CC/CV), and polarity selection terminals. Follow these steps for each process:

SMAW (Stick) Setup:

1. Set the process selector to CC.
2. Connect the electrode cable to (+) for DCEP (standard for E7018, E6013) or (−) for DCEN (E6010 with minimum spatter preference).
3. Use the coarse range selector to bracket your target amperage, then fine-tune with the output control knob.
4. Strike and adjust. At 400 A, the arc is forceful — reduce arc length and travel speed proportionally.

GMAW/FCAW (MIG/Flux-Core) Setup:

1. Set the process selector to CV.
2. Connect the wire feeder control cable to the 14-pin receptacle on the rear panel.
3. Set output voltage using the coarse range plus fine control. A starting point for 0.045 in E70S-6 wire: 26–28 V arc voltage at 250–300 IPM wire speed.
4. The wire feeder's WFS (wire feed speed) control independently sets amperage. The DC-400's CV output maintains the preset voltage while the feeder adjusts WFS for self-regulation.

Compatibility

The IDEALARC DC-400 is compatible with a wide range of Lincoln Electric accessories:

• Wire feeders: Lincoln LN-7, LN-8, LN-9 (via 14-pin control cable); LN-25 Pro (via direct connection); NA-3/NA-5 (for SAW).
• Electrode holders: Lincoln K875 300-A or K904 400-A for heavy electrode work.
• Remote controls: Lincoln K857 remote amperage/voltage control, K924-4 100-ft remote kit.
• Work leads: Lincoln K2485 3/0 electrode cable, 50 ft for high-amperage stick applications.
• Related products: Lincoln K2394-1 Electrode Holder & Work Clamp Set and Lincoln Idealarc 250 for lower-amperage companion applications.

Care & Maintenance

• Quarterly air purge: Use 30 PSI compressed air to blow dust, scale, and flux from all internal components — especially the SCR heatsink fins and transformer windings. Do not use compressed air from oily compressors without a filter/dryer.
• SCR heatsink inspection: Inspect the rectifier heatsink stack twice yearly. Discoloration, burned silicone, or cracked devices indicate thermal overload. Replace the SCR assembly only with Lincoln-specified replacement parts (consult part number S21956).
• Contactor inspection: The main contactor closes when the machine is energized. Listen for a clean, single click on startup. Chattering or sustained buzzing indicates worn contacts — have a qualified technician replace the contactor.
• Range switch maintenance: Inspect the coarse range selector contacts annually. Clean oxidized contacts with 320-grit emery cloth; do not use steel wool or coarse abrasives.
• Annual output calibration: Verify CC output at 200 A and 350 A using a calibrated shunt/ammeter. Verify CV output at 24 V, 28 V, and 36 V. Drift greater than ±3% warrants factory service or adjustment of the feedback pot.
