Cargo Trade Inc
Lincoln Ranger 225 Engine Driven Welder
Lincoln Ranger 225 Engine Driven Welder
Regular price
$4,500.00
Regular price
Sale price
$4,500.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

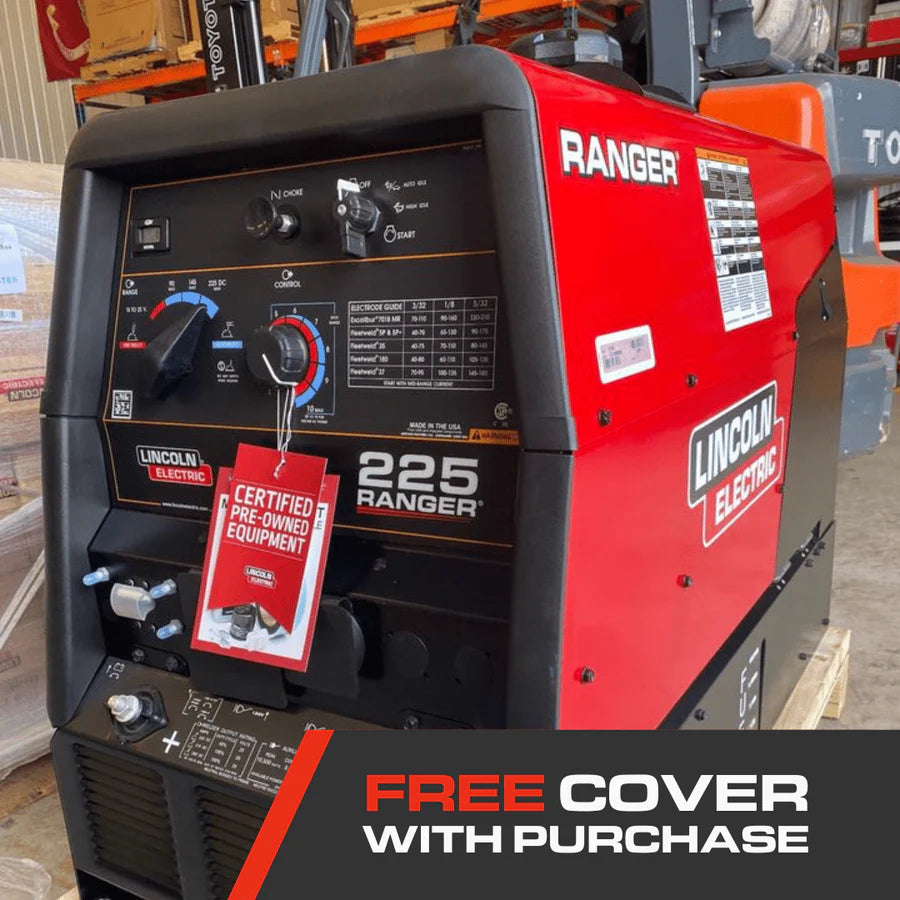

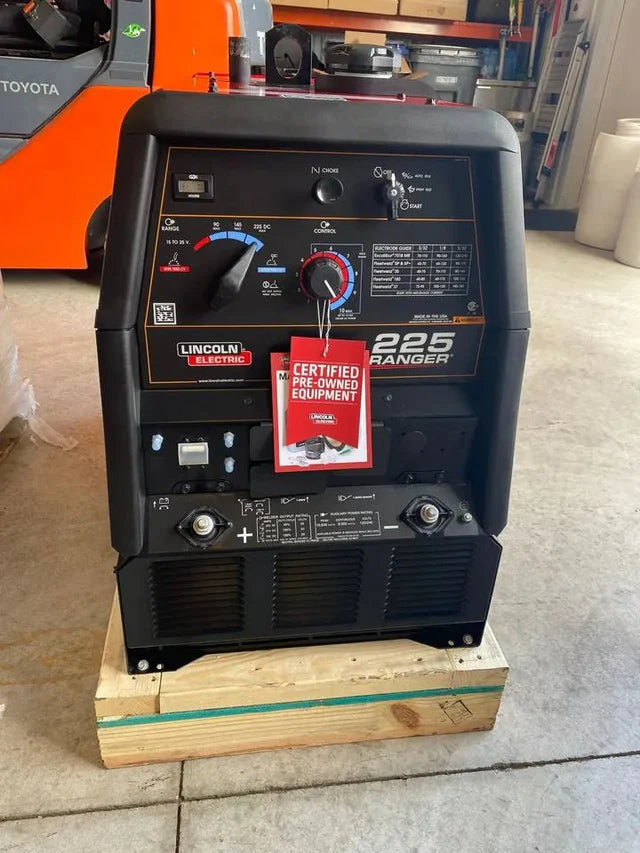

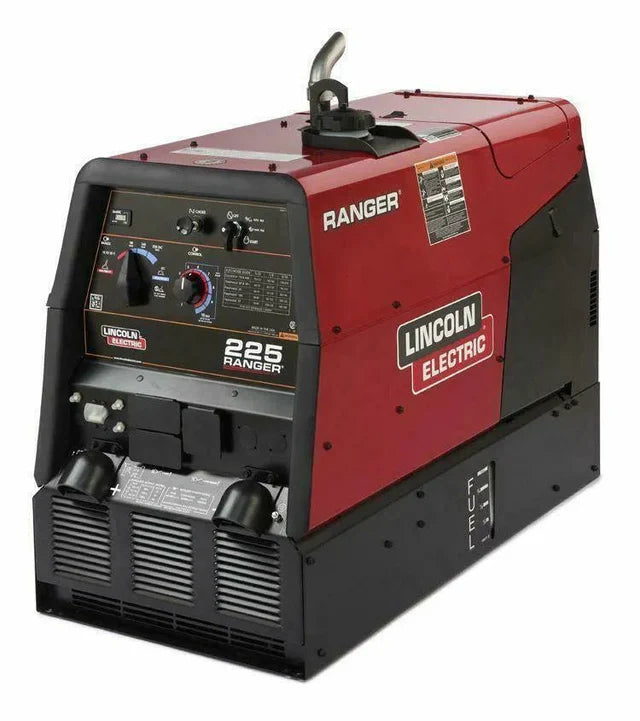

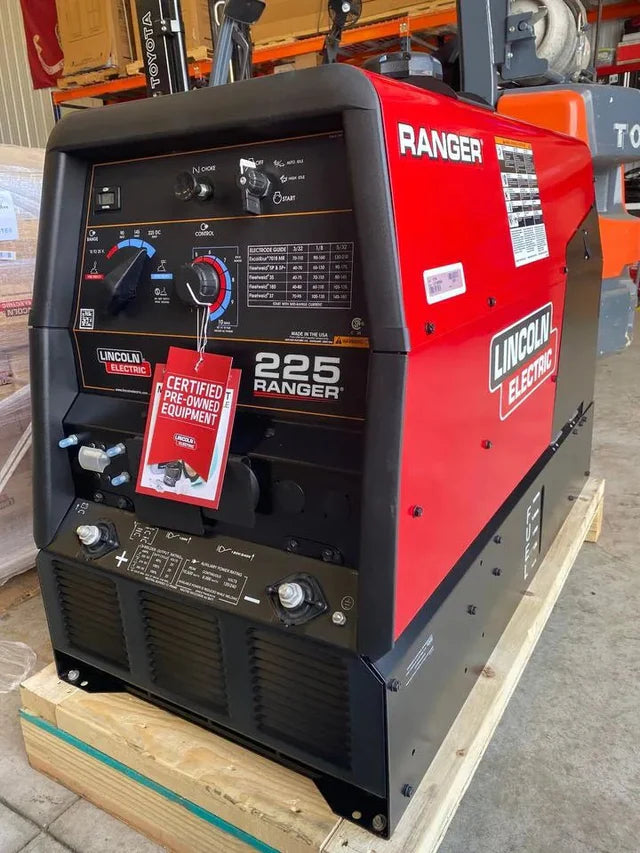

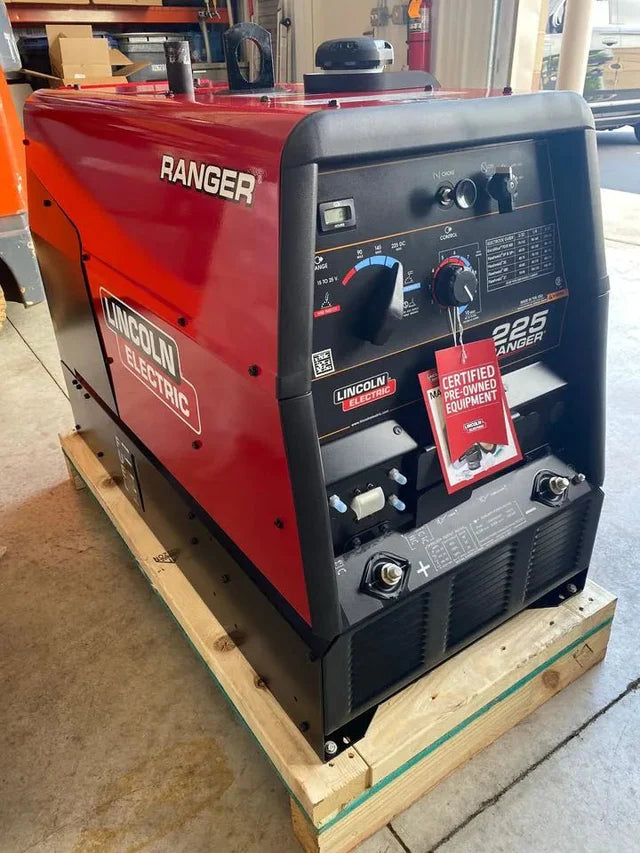

Used Lincoln Ranger 225 — Low Hour Factory Demo Engine Driven Welder Kohler — U2857-1
The Lincoln Ranger 225 Factory Demo Engine Driven Welder Kohler delivers versatile DC welding, 10,500W generator power, and rugged reliability with a 23 HP gasoline engine.
Lincoln Ranger 225 Engine Driven Welder — Factory Demo (U2857-1)
Specifications sourced from Lincoln Electric's current production Lincoln Ranger 225. Factory Demo units are certified to identical factory performance standards.
| Welding Output | 225A (CC-Stick/TIG: 50–225A; CV-Wire: 15–25V) |
| IEC Rating | 225A at 100% duty cycle @ 104°F (40°C) |
| Duty Cycle | 100% @ 104°F (40°C) |
| Welding Processes | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G) |
| Auxiliary Power Output | 9,000W Continuous / 10,500W Peak, 120/240V, 60 Hz |
| Receptacles | NEMA 5-20R, NEMA 14-50R |
| Engine | Kohler OHV Command CH730, 23 HP, 2-Cylinder Air-Cooled |
| Fuel Type | Gasoline |
| Fuel Tank | 12 US gal (45.4 L) |
| Net Weight | 514 lbs (233 kg) |
| Dimensions (H × W × D) | 30 in × 21.5 in × 42.3 in (762 mm × 546 mm × 1073 mm) |
| Sound Level | 76.4 dBA at 23 ft |
| Key Technologies | Chopper Technology, ReadySet.Weld capability with optional equipment, CrossLinc compatible |
| Warranty | 3 Years Parts and Labor (engine warranted separately by Kohler) |
What's Included
Every factory demo Lincoln Ranger 225 shipped by WeldingMart includes:
- Operator's manual, welding leads, standard accessory package
- WeldingMart factory demo prep certification documentation
- Lincoln Electric warranty registration (from your purchase date)
Optional accessories — spark arrestor kits, remote control units, wire feeders, extended warranty packages
