Used Lincoln Ranger Air 330MPX Multi-Function Engine Drive
Used Lincoln Ranger Air 330MPX Multi-Function Engine Drive
Regular price
$13,400.00
Regular price
Sale price
$13,400.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

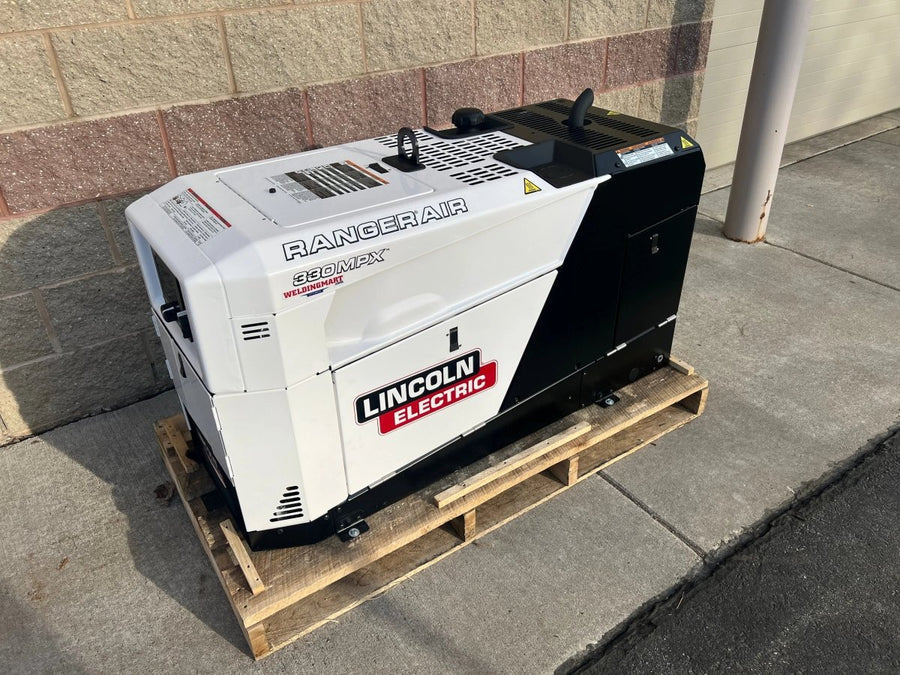

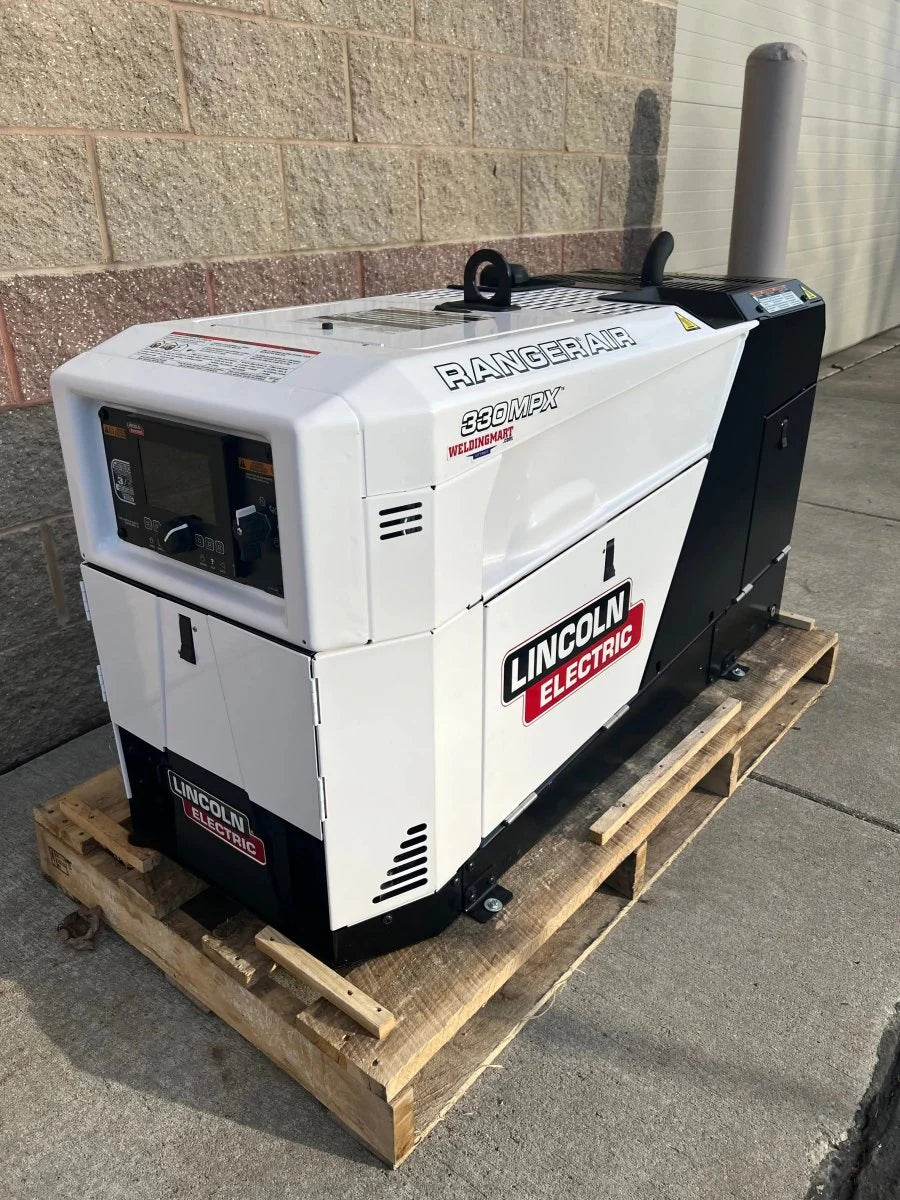

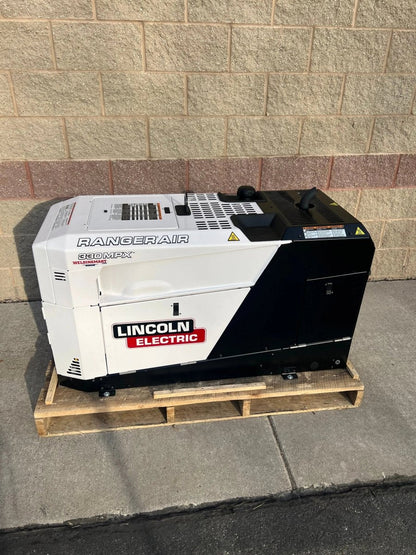

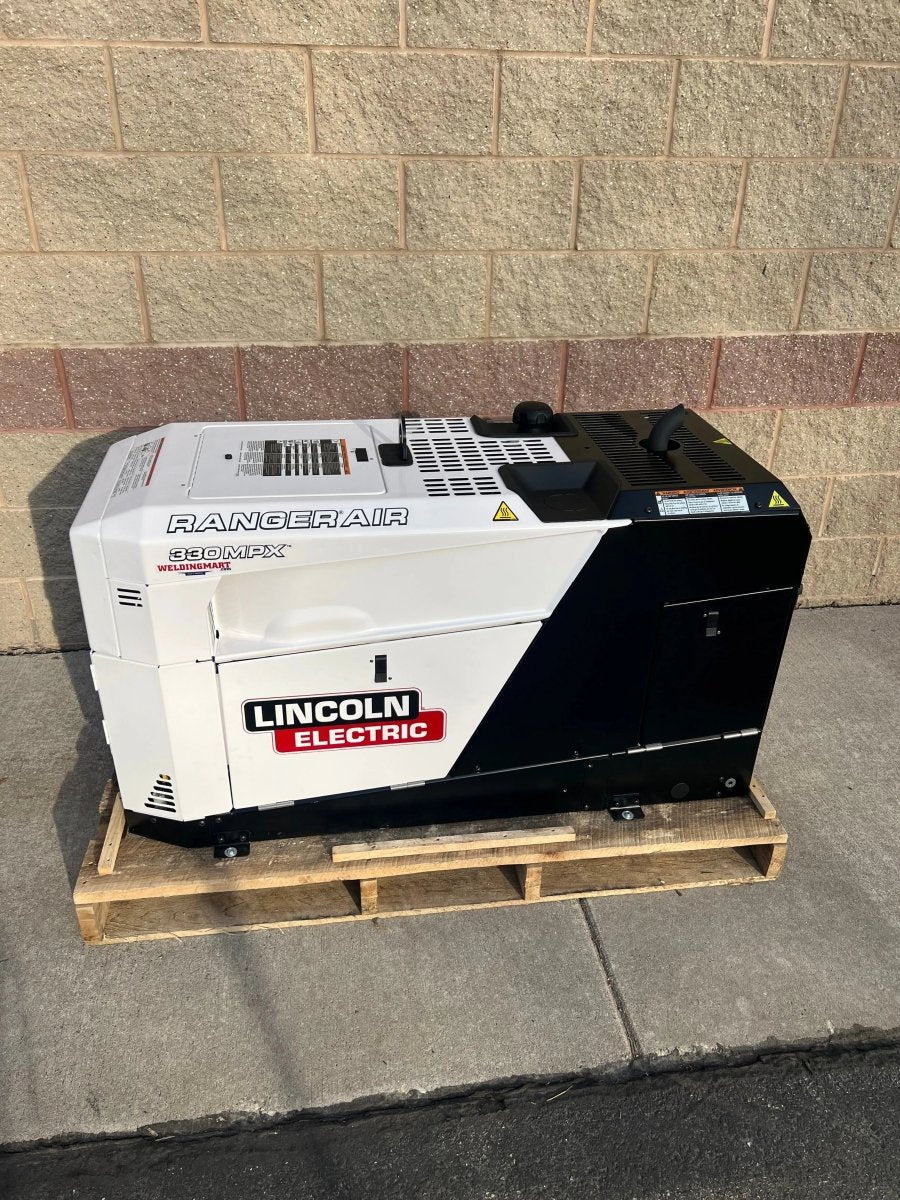

Used Lincoln Ranger Air 330MPX Multi-Function Engine Drive
The Lincoln Ranger Air 330MPX - U5239-1 is a revolutionary 5-in-1 engine drive system combining air compressor, generator, battery services, and multi-process welding in one compact unit. With advanced digital controls, fuel-saving technology, and industry-leading performance, this versatile powerhouse maximizes capabilities while minimizing equipment needs for operators facing diverse daily challenges.
Specs & Capabilities — Lincoln Ranger Air 330MPX
Specifications sourced from Lincoln Electric's current production Lincoln Ranger Air 330MPX. Factory Demo units are certified to identical factory performance standards.
| Welding Output | 330A (IEC: 292A/31.7V/100% @ 40°C; CC-Stick: 35–330A; CV-Wire: 16–27V; TIG: 25–330A) |
| IEC Rating | 292A/31.7V/100% @ 104°F (40°C) |
| Duty Cycle | 100% @ 104°F (40°C) |
| Welding Processes | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW-S/G), Gouging (CAC-A) |
| Auxiliary Power Output | 10,000W Continuous, 120/240V, 60 Hz |
| Receptacles | NEMA 5-20R, NEMA 6-50R, NEMA 14-50R |
| Engine | Kohler OHV Command Pro EFI Electronic Throttle Body ECH749, 26.5 HP, 2-Cylinder Air-Cooled |
| Fuel Type | Gasoline |
| Fuel Tank | 11 US gal (41.6 L) |
| Net Weight | 565 lbs (256 kg) |
| Dimensions (H × W × D) | 26 in × 20 in × 48 in (660 mm × 508 mm × 1219 mm) |
| Sound Level | Standard EFI engine noise profile |
| Key Technologies | 5-in-1: welding + air compression + power generation + battery jump-start + battery charging. CrossLinc®, J1939 CAN, Ready.Set.Weld®, Chopper Technology® |
| Warranty | 3 Years Parts and Labor |
| Air Compressor | Vanair Rotary Screw — 40 CFM @ 150 PSI, max 225 PSI system pressure |
What's Included
Every factory demo Lincoln Ranger Air 330MPX shipped by WeldingMart includes:
- Operator's manual, welding leads, standard accessory package (air hoses per configuration)
- WeldingMart factory demo prep certification documentation
- Lincoln Electric warranty registration (from your purchase date)
Optional accessories — spark arrestor kits, remote control units, wire feeders, extended warranty packages
